NEW Recently launched at IMTS – KURT 5 Axis Extended programme

6th October 2016

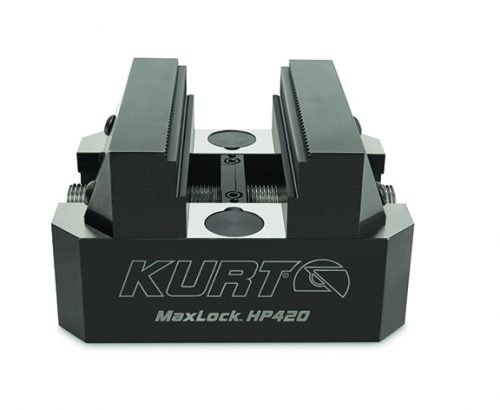

MaxLock HP420 Vise (+440 and 460 series)

• Designed with 2 sets of jaws, Serrated and Dovetail (shipped with serrated jaws).
• Each set of jaws has 3 different clamping areas, at the bed, in the middle of the jaw and at the top of the jaw. See table below.
• Combats lift with new Kurt lift control system.
• ±0.0005” repeatability.
• 80,000 psi Ductile iron body for rigidity and vibration damping.
• Hardened ways.
• 4140 heat treated steel jaws.
• 3/4” screw diameter for strength.
• Heavy duty bolt down with 1/2″ cap screws.
• Screw internally hexed for a smaller footprint.
• Center line on vise easily adjusts to the center of the table rotation.
• Three sizes available: 5″, 7″, and 9″ Long.
• Estimated Ship Weight: 10 Lbs. (HP420)
• Clamps both OD and ID.
• Patents pending.

kurt-5-axis-workholding-cis

Kurt MaxLock 5 Axis Vise
